SnoTek TRINITY TRIDUSA

Ãœbersicht

SnoTek TRINITY TRIDUSA

The flagship of Bachler


From marginal temperature with maximum performance
The Bachler SnoTek TRINITY TRIDUSA manages the balancing act between incomparable performance in the marginal temperature range and maximum performance at lower temperatures and, as typical for Bachler, does so with extremely low additional energy requirements.

The 4-stage snow lance covers with the first two stages the almost legendary performance of the Bachler three-head lance SnoTek TRACK TRIDUSA. Snow production is possible from -1.5° wet bulb temperature and an impressive 12 m3 of snow at 20 bar water pressure and even 21 m3 at 60 bar per hour are achieved.

By redesigning key elements, a weight saving of around 9 kg was achieved in the lance head. The larger nozzle block of the Bachler SnoTek TRINITY TRIDUSA made possible to offers two additional snow levels, which enable finer gradations. A maximum water flow of up to 852 l/min and up to 115 m3 of snow per hour is achieved. A performance balancing act that is unparalleled.


Technical data

Lance lengths 10m, 8.5m, 7m, 5m
Type of control anual, automatic, fully automatic
Snowing levels 4
Weight incl. lifting device 190 kg (at 10 m Lance length)
Energy requirement 2.5 kW (central air), 4.0 kW (Onboard-Compressor)
Air supply max. 450 Nl/min at 10 bar
Water flow rate 90 to 852 l/min
Working pressure 20 - 60 bar
Throw 5 - 30 m
Noise level 66 dB at 20 m
Fast change system BTT available, for optimized handling
Nozzle assembly 3 heads with each 3 water-nozzles, 1 V-Jet-Nozzle unit, 6 nucleator nozzles
Start marginal temperature -1.5° WBT
Maximum performance from -7.7° WBT
Snowing performance 12 up to 115 m3/h
Specific snow weight 400 - 450 kg/m3, adjustable
Foundation Pit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversion easily possible, for existing Bachler lances as well for other providers

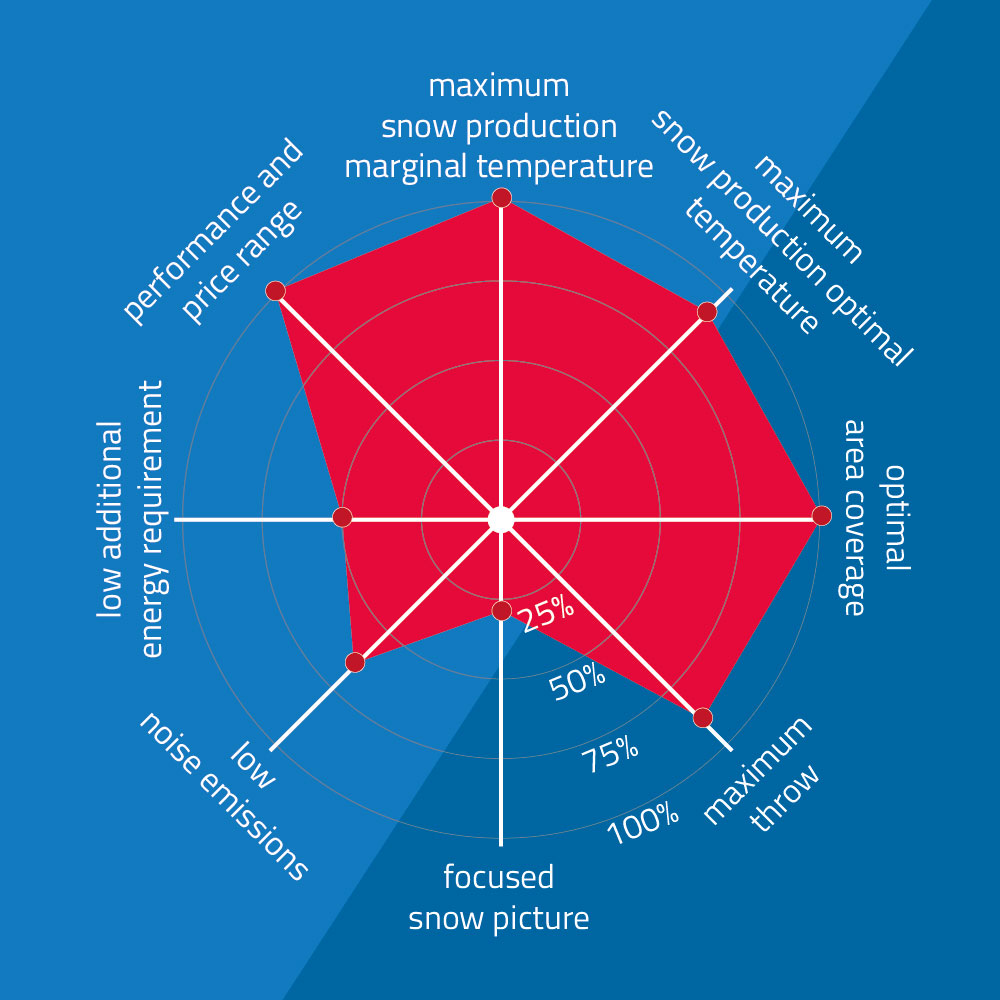

Snow cover map and Snowspider
