Overview

SnoTek ET

Ãœbersicht

SnoTek ET

The slim one under the fan guns


The combination of the nozzle technology of NESSy and the patented nozzle technology of SnoTek results in throw width like low pressure snow guns and the same amount of snow.

SnoTek ET is based on the established NESSy technology (see datasheet NESSy). The combination of the nozzle technology of NESSy and the patented nozzle technology of SnoTek results in throw width like low pressure snow guns and the same amount of snow. The SnoTek nozzle technology is practically wind-insensible. SnoTek ET has more than 8 different snow steps with which you can always generate the desired snow quality.
  • Modular design
  • High-quality nozzles from MVT micro technologies AG
  • Existing BÄCHLER snowguns can be upgraded easily

Technical data:

Lance lengths 10m, 8.5m, 7m, 5m
Type of control manual, automatic, fully automatic
Snowing levels 8
Weight incl. lifting device 167 kg (at 10 m Lance length)
Energy requirement 0.8 kW (central air), 2.2 kW (Onboard-Compressor)
Air supply max. 150 Nl/min at 10 bar
Water flow rate 30 to 460 l/min
Working pressure 20 - 60 bar
Throw 5 - 35 m
Noise level 62 dB at 20 m
Fast change system BTT available, for optimized handling
Nozzle assembly 3 water-nozzles, 1 V-Jet-Nozzle unite, 6 nucleator-nozzles
Start marginal temperature -1.5° WBT
Maximum performance from -7° WBT
Snowing performance 4 up to 62 m3/h
Specific snow weight 400 - 450 kg/m3, adjustable
Foundation Pit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversion easily possible, for existing Bachler lances as well for other providers

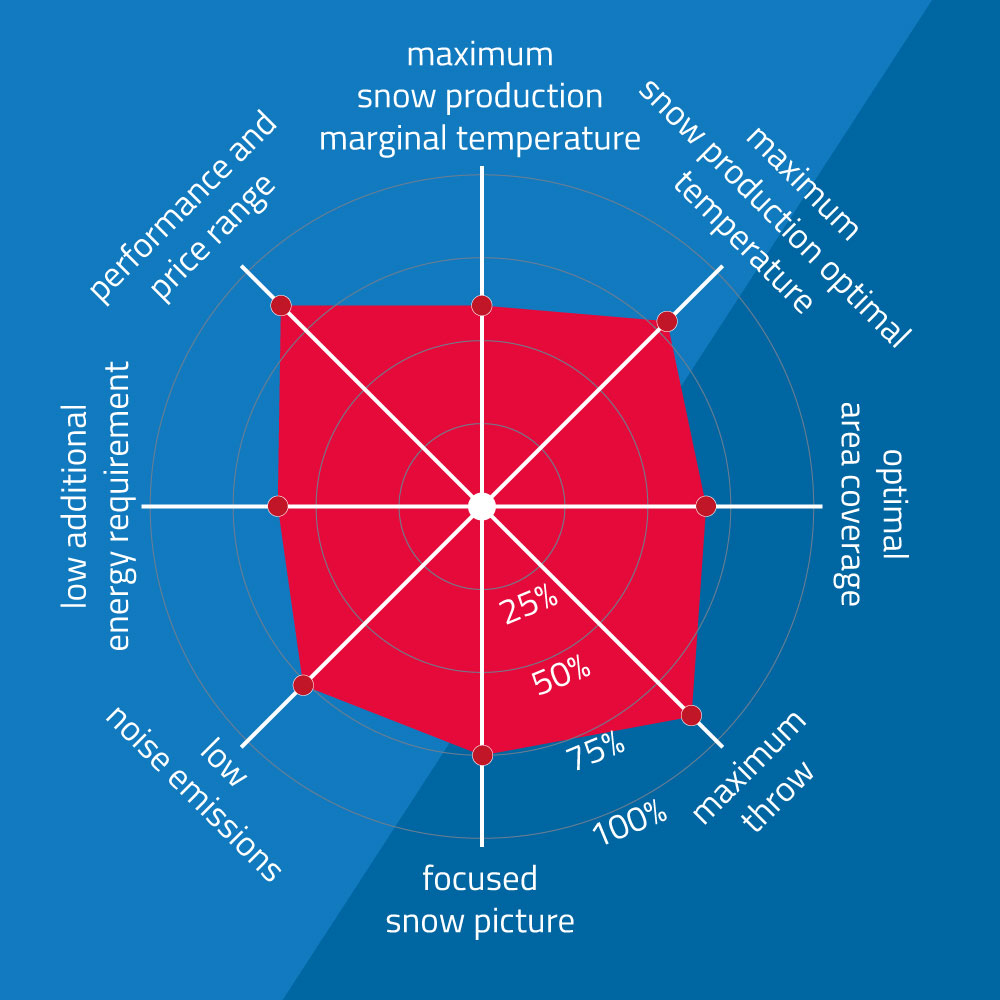

Snow cover map and Snowspider
