Overview

SnoTek V1 6D MEDUSA

Ãœbersicht

SnoTek V1 6D MEDUSA

The single-level double head with the wow effect


The Bachler SnoTek V1 6D MEDUSA has „only“ one snowing level, but offers the perfect mix of starting temperature and snow power. At -3.0° wet bulb temperature, a snow output of up to 35 m3 of snow per hour is achieved. The first choice, among other things for retrofitting older systems.

The development focused on two central areas. On one hand the simplicity of use with an excellent performance in the starting area and on the other hand the possibility for a wide range of uses in the field of retrofitting. This is made possible by the specially arranged 6 water-in connection with 6 nucleator-nozzles.

The system can be used in a network, as a stand-alone solution with an onboard compressor or for almost any third-party system. Older systems can achieve significantly higher snow performance by only replacing the head. In addition, the integrated bayonet system offers easy handling and makes changing the heads even during snowmaking super easy.


Technical data:

Lance 10m, 8.5m, 7m, 5m
Type of control manual, automatic, fully automatic
Snowing levels 1
Weight incl. lifting device 164 kg (at 10 m Lance length
Energy requirement 5.4 kW (central air)
Air supply max. 975 Nl/min at 10 bar
Water flow rate 120 to 260 l/min
Working pressure 20 - 60 bar
Throw 5 - 20 m
Noise level 64 dB at 20 m
Fast change system for optimized handling
Nozzle assembly 2 heads with each 6 water-nozzles, 6 nucleatornozzles
Start marginal temperature -3.0° WBT
Maximum performance from -3.0° WBT
Snowing performance 16 up to 35 m3/h
Specific snow weight 400 - 450 kg/m3, adjustable
Foundation Pit constructions, Concrete- and Screw-Foundations, Mobile solutions
Retrofit/Conversion easily possible, for existing Bachler lances as well for other providers

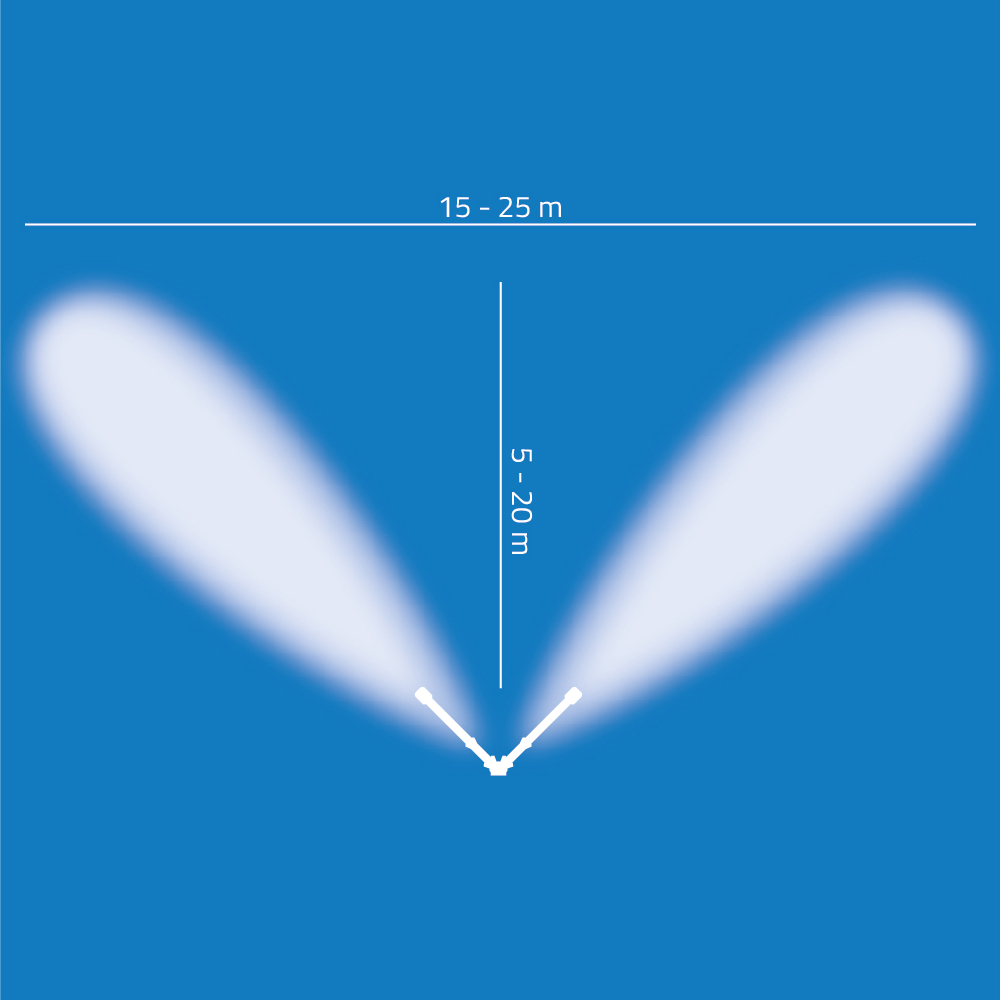

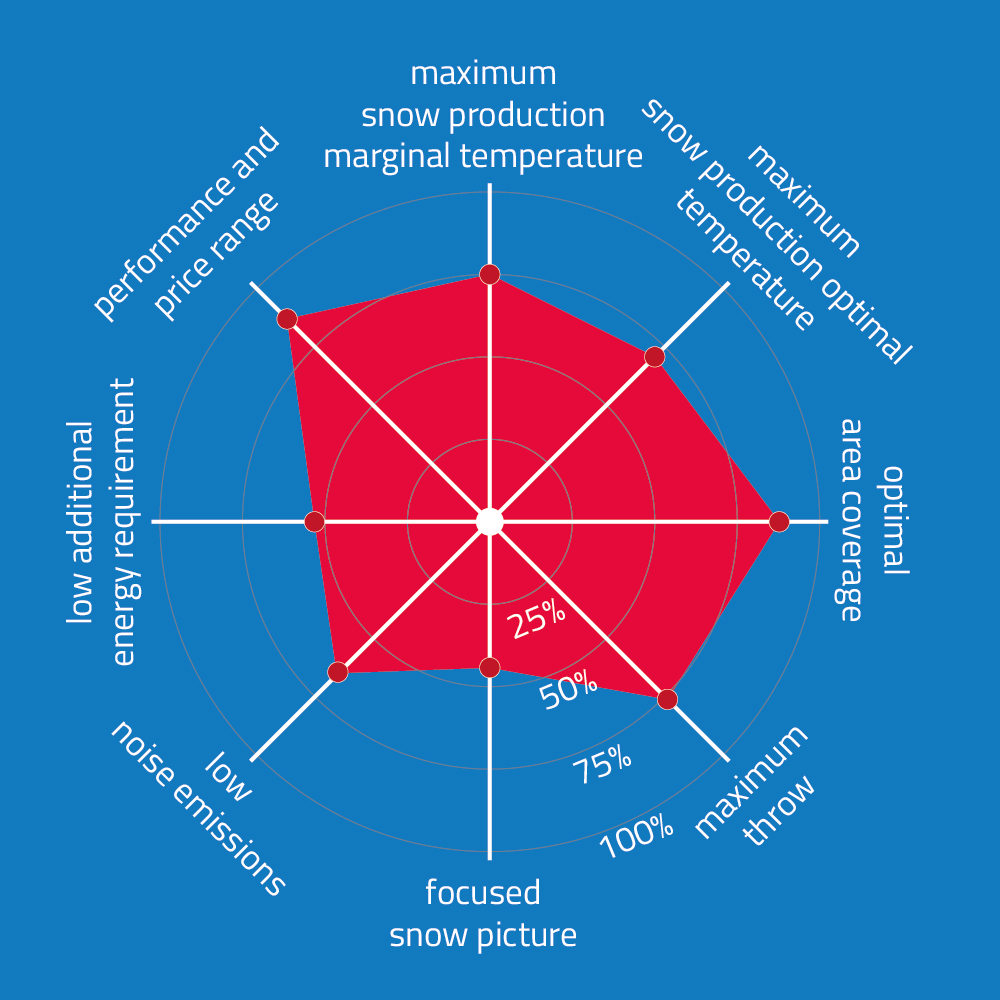

Snow cover map and Snowspider

SnoTek TRACK 6D MEDUSASnoTek TRACK 6D MEDUSA
